Air source heat pumps

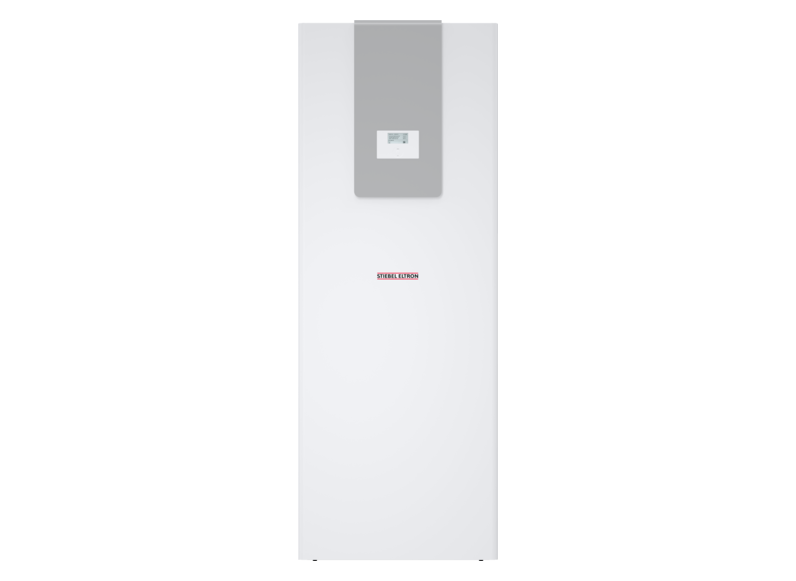

WPL Classic Pack 3

  • Product details

    Application • Mono block heat pump with output-dependent control, with one DHW cylinder including all hydraulic components for the heating system. • In addition to the DHW cylinder, standard delivery also includes circulation pump, 3/2-way diverter valve, heating expansion vessel, safety valve and electric emergency/auxiliary heater. • Control is provided by the integral heat pump manager.



    Technical datasheet

    Product Number: 204917

    Energy efficiency class: A++/A+++

    Heating output at A2/W35 (EN 14511): 5.73 kW

    Heating output at A-7/W35 (EN 14511): 7.80 kW

    Cooling capacity at A35/W18: 3.00 kW

    COP at A2/W35 (EN 14511): 3.97

    COP at A-7/W35 (EN 14511): 2.92

    Energy efficiency ratio at A35/W18: 3.28

    SCOP (EN 14825): 4.50

    Sound power level (EN 12102): 57 dB(A)

    Min./max. application limits for heat source: -20/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 812 mm

    Width: 1152 mm

    Depth: 524 mm

    Weight: 91 kg

    Refrigerant: R410A

    Show all

    Download as PDF

    Equipment datasheet
