Air source heat pumps
WPL Classic Pack 4

  • Product details

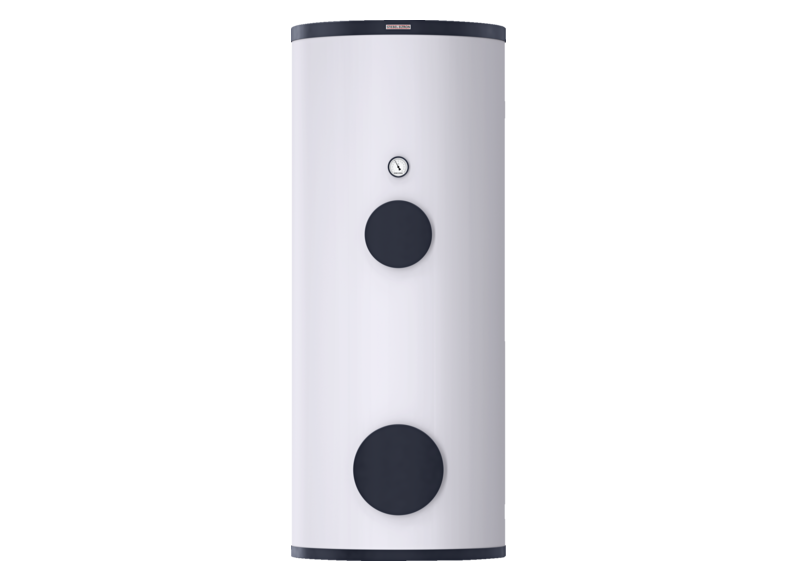

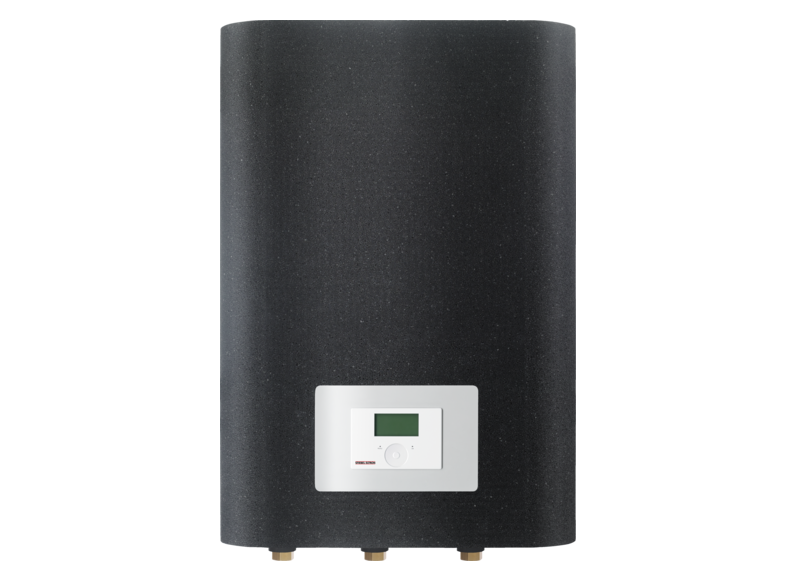

    Application • Mono block heat pump with output-dependent control in combination with a separate buffer cylinder and DHW cylinder. The hydraulic module for connecting these components is included in the standard delivery. • The highly efficient circulation pump for the heating and DHW sides, electric emergency/auxiliary heater, heating expansion vessel, safety valve, quick-action air vent valve and the 3/2-way diverter valve are already integrated. • The integral heat pump manager controls the appliance. • The buffer cylinder is used to separate the flows. • A circulation pump for supplying the heating circuit is included in the set.



    Technical datasheet

    Product Number: 204918

    Energy efficiency class: A++/A+++

    Heating output at A2/W35 (EN 14511): 5.73 kW

    Heating output at A-7/W35 (EN 14511): 7.80 kW

    Cooling capacity at A35/W18: 3.00 kW

    COP at A2/W35 (EN 14511): 3.97

    COP at A-7/W35 (EN 14511): 2.92

    Energy efficiency ratio at A35/W18: 3.28

    SCOP (EN 14825): 4.50

    Sound power level (EN 12102): 57 dB(A)

    Min./max. application limits for heat source: -20/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 812 mm

    Width: 1152 mm

    Depth: 524 mm

    Weight: 91 kg

    Refrigerant: R410A

    Show all

    Download as PDF

    Equipment datasheet
