Accessories
LSWP 315-1,5 D

  • Product details

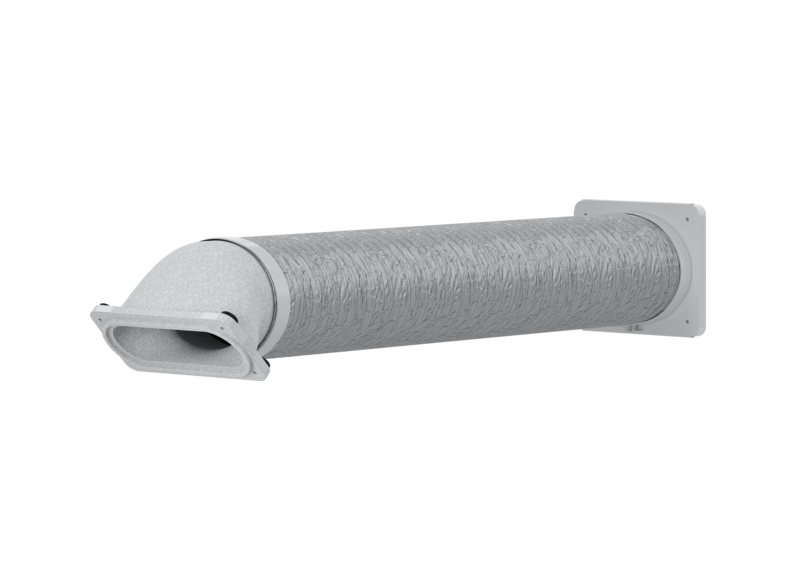

    Description • The thermally insulated, sound-absorbing, flexible air hose for the outdoor and exhaust air ducting of integral ventilation units (with R290) is equipped with pre-assembled quick-fit adaptors. • The quick-fit adaptor with integral 45 degree bend was specially developed for connection to integral units. The straight quick-fit adaptor is intended for connection to AWG-B 315 or AWG 315.2. • The outer sheath is made from aluminium-plastic laminate, the inner from polypropylene cloth. In between is a sound absorbing, thermal insulating layer made of mineral wool. Wire spirals in the outer and inner sheath give the hose stability. • The quick-fit adaptor made of EPS is ready mounted and sealed.



    Technical datasheet

    Product Number: 207477

    Nominal diameter: 315 mm

    Length: 1500 mm

    Thermal insulation thickness: 50 mm

    Colour of air hose: grey
