Air source heat pumps
WPL Plus Pack 4

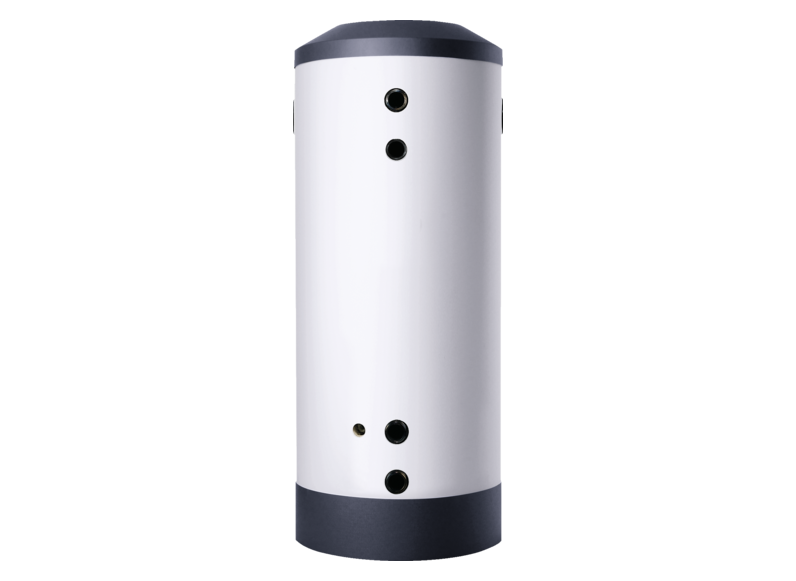

    • Separate buffer cylinder for separation of flow rates for maximum operational reliability

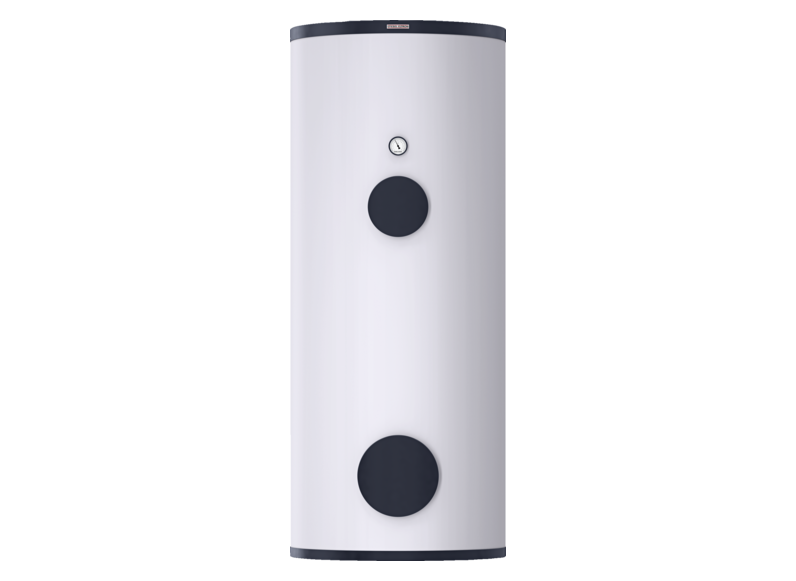

    • High DHW convenience due to separate DHW cylinder
    • Air source heat pump set for maximum efficiency in new build or modernisation
    • Mono block heat pump, with its variable speed compressors, ensures perfectly matched heating output and high flow temperatures all year round

    Questions about the product

    Get contact

    Product details

    Application • Mono block heat pump with output-dependent control, with high flow temperatures all year round in combination with a separate buffer cylinder and a large DHW cylinder. • The wall mounted heat pump manager controls the appliance. • A buffer cylinder for separating the flows is included. • An insulated pump assembly supplies the heat distribution system.


    Technical datasheet

    Product Number: 204914

    Energy efficiency class: A+++

    Heating output at A2/W35 (EN 14511): 8.33 kW

    Heating output at A-7/W35 (EN 14511): 12.86 kW

    COP at A2/W35 (EN 14511): 4.14

    COP at A-7/W35 (EN 14511): 2.98

    SCOP (EN 14825): 4.39

    Sound power level (EN 12102): 55 dB(A)

    Min./max. application limits for heat source: -20-40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 65 °C

    Height: 1045 mm

    Width: 1490 mm

    Depth: 593 mm

    Weight: 175 kg

    Refrigerant: R410A

    Show all

    Download as PDF

    Equipment datasheet
