Accessories
AHP-CM.1
-
![STIEBEL ELTRON Accessories AHP-CM.1]()
Questions about the product Get contact- Insulated cooling module for Plus series ground source heat pumps up to 20 kW heating output
- Compact design
- Simple and straightforward to install
- Wall mounting bracket included in delivery
![STIEBEL ELTRON Accessories AHP-CM.1]()
Product details

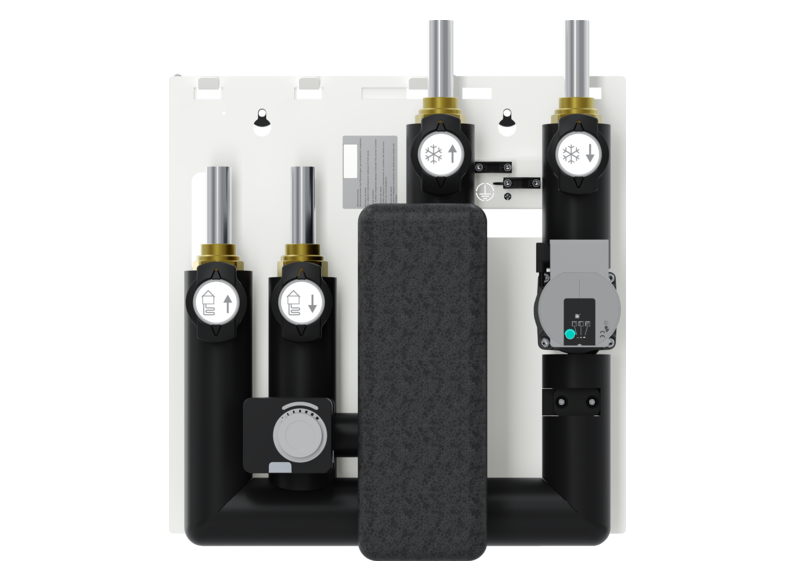

Description • The cooling module for cooling with brine-water heat pumps combines all necessary components in one installation. With the cooling module, a passive cooling circuit is added to the heat pump. • The cooling module can be mounted either on the wall or, using the included mounting rails, on the side of the heat pump. This saves valuable space in the installation room. The well-designed construction also enables quick installation. • On the functional carrier plate, a plate heat exchanger is integrated, designed for heat pumps with a heating capacity of up to 20 kW. A mixer and the circulation pump ensure smooth operation. • For service, the cooling module can be separated from the brine and heating circuit using the integrated shut-off valves.
