Air source heat pumps
WPL Classic Pack 1

    • The air source heat pump is ideally suited to new builds

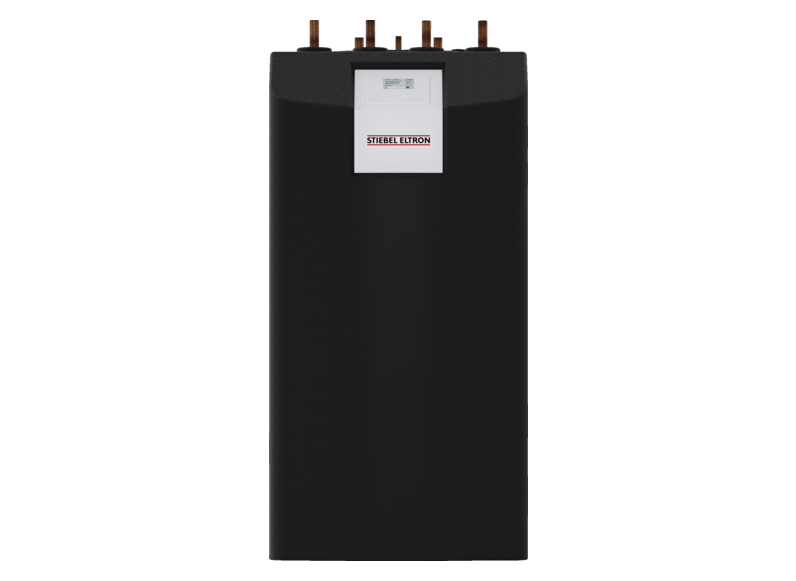

    • Compact DHW cylinder with integral hydraulic components including heat pump manager for heat pumps and heating circuit connection in a single casing
    • Cost optimised solution with all required system components incl. DHW cylinder
    • The mono block heat pump is installed outdoors and its variable speed compressor ensures perfectly matched heating output
    • Small footprint as just one indoor and outdoor unit is required

    Questions about the product

    Get contact

    Product details

    Application • Mono block heat pump with output-dependent control, with highly integrated indoor module for space saving and rapid installation. • The heat pump is optimised for use in new builds and for combining with an underfloor heating system. • The indoor module also contains the following: DHW cylinder, heating circuit pump, 3/2-way diverter valve, safety valve, electric emergency/auxiliary heater and the heat pump manager which is used to control the system.


    Technical datasheet

    Product Number: 204915

    Energy efficiency class: A++/A+++

    Heating output at A2/W35 (EN 14511): 5.73 kW

    Heating output at A-7/W35 (EN 14511): 7.80 kW

    Cooling capacity at A35/W18: 3.00 kW

    COP at A2/W35 (EN 14511): 3.97

    COP at A-7/W35 (EN 14511): 2.92

    Energy efficiency ratio at A35/W18: 3.28

    SCOP (EN 14825): 4.50

    Sound power level (EN 12102): 57 dB(A)

    Min./max. application limits for heat source: -20/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 812 mm

    Width: 1152 mm

    Depth: 524 mm

    Weight: 91 kg

    Refrigerant: R410A
