Ground source heat pumps
WPE-I 12 HW 230 GB Premium Pack

  • Product details

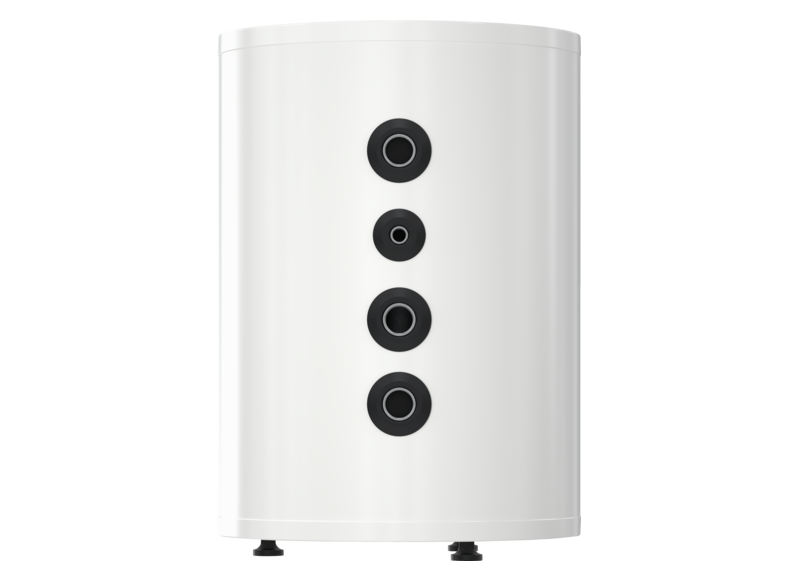

    Application • This compact ground source heat pump with output-dependent control and inverter technology is installed indoors. It has an integral DHW cylinder and is combined with a separate buffer cylinder. • Due to the very high flow temperatures of up to 75 °C, the heat pump is ideal for use in new and modernised buildings.

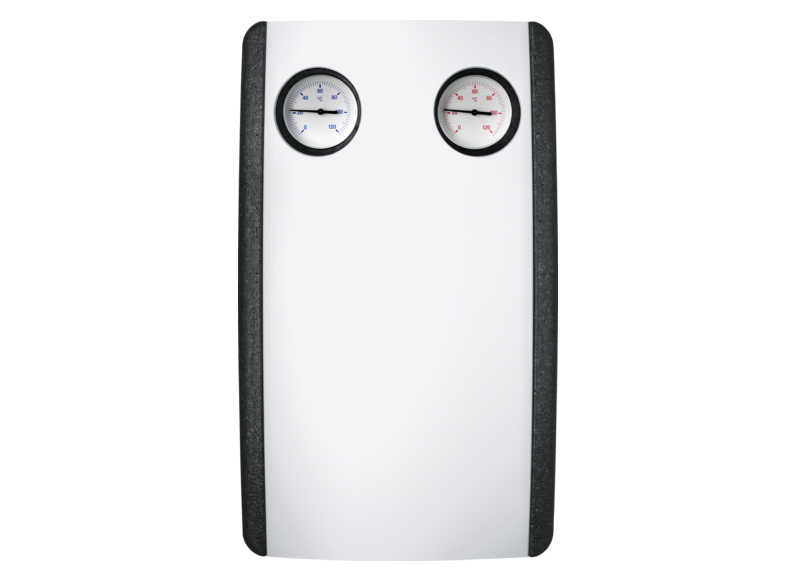

    A heat pump controller is integrated for fully automatic, weather-compensated control of the heating system. • Both the brine and heating sides are equipped with a high efficiency circulation pump. • An insulated pump assembly supplies the heat distribution system.



    Technical datasheet

    Product Number: 204403

    Energy efficiency class: A+++

    Heating output at B0/W35 (EN 14511): 4,19 kW

    Heating output at B0/W35 (min./max.): 2,1 - 12,7 kW

    Nominal capacity: 162 l

    COP at B0/W35 (EN 14511): 5.01

    SCOP (EN 14825): 5.59

    Sound power level (EN 12102): 43 - 49 dB(A)

    Height: 1937 mm

    Width: 600 mm

    Depth: 703 mm

    Weight: 275 kg

    Refrigerant: R454C
