Comfort instantaneous water heaters
DHE 18/21/24 Set

  • Product details

    Use water your way

    Every one of our fully electronic instantaneous water heater models provides hot water at the exact temperature you have set at all times. No ifs or buts. The 4i technology ensures that nothing interferes with the outlet temperature. Enjoy constant hot water in the shower, even if somebody needs to wash their hands at the washbasin beside you.



    Make all your own choices

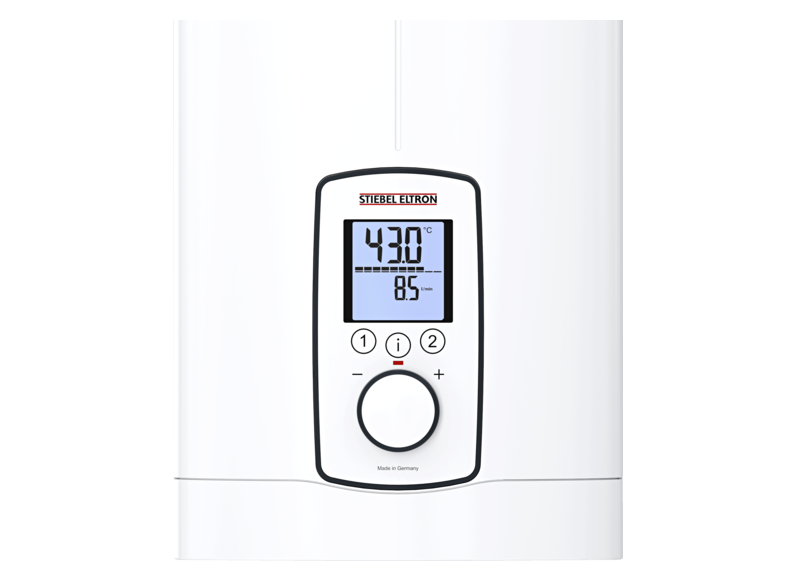

    The haptic rotary selector ensures the appliance is very easy to operate: intuitive, instant, precise.



    Know exactly what's going on

    The illuminated multifunction display gives you a clear overview of your required water temperature, the ECO level and current power consumption. You can check energy consumption, flow rate, time, status and service information in the lower part of the display.



    ERP product datasheet
    UK ERP product datasheet
    Technical datasheet

    Product Number: 204284

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 18/21/24 kW

    Rated output 1: 16,2/19/21,7 kW

    Rated output 2: 18/21/24 kW

    Rated output 3: 19,4/22,6/25,8 kW

    Rated current: 29/31/35 A

    Rated current 1: 27,6/29,5/33,3 A

    Rated current 2: 29/31/35 A

    Rated current 3: 30,1/32,2/36,3 A

    Fuse protection: 32/32/35 A

    Fuse protection 1: 32/32/35 A

    Fuse protection 2: 32/32/35 A

    Fuse protection 3: 32/32/40 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP25

    Temperature setting: Off, 20-60 °C

    Colour: white

    Height: 466 mm

    Width: 225 mm

    Depth: 116 mm

    Weight: 3.10 kg

    Energy efficiency class: A
