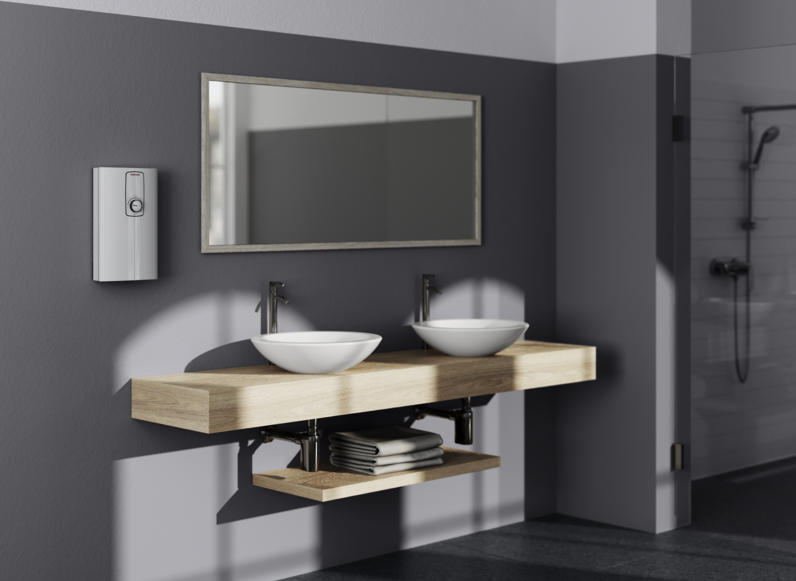

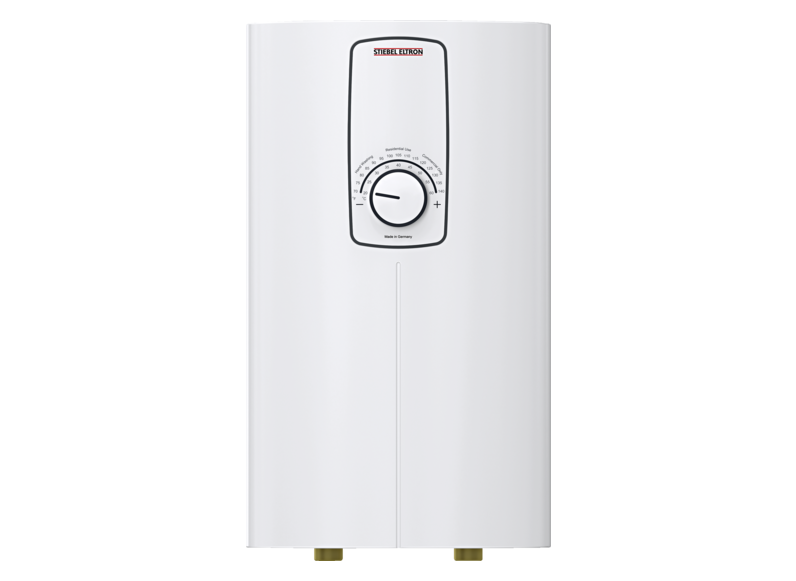

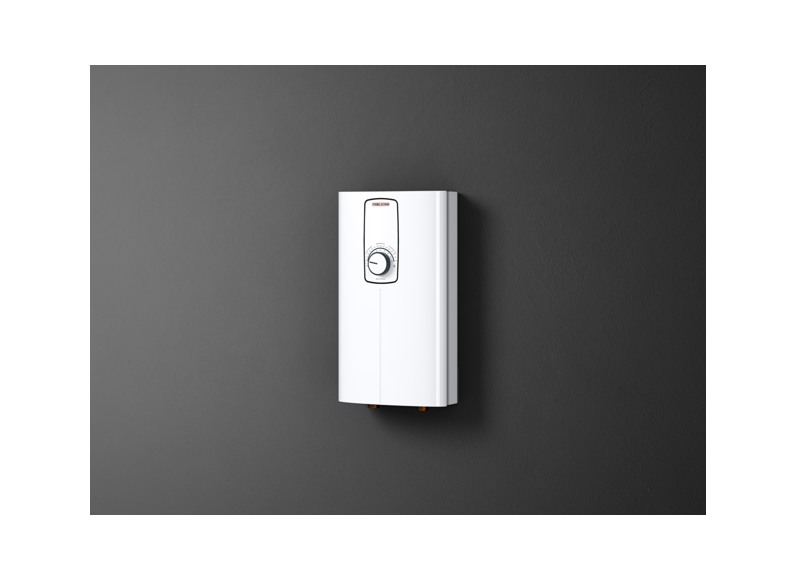

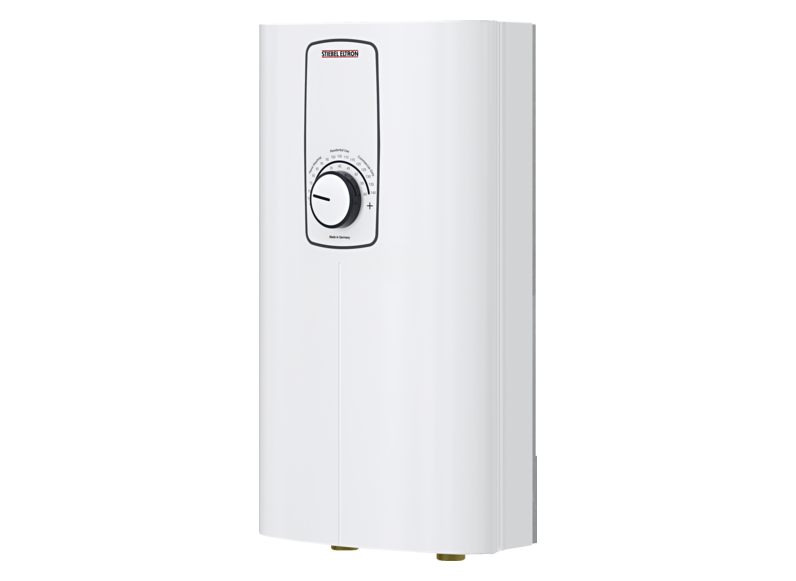

Compact instantaneous water heater
DCE-S 10/12 Plus

  • 360°
    • Compact instantaneous water heater with electronic closed-loop control
    • Very good energy efficiency thanks to 3i technology
    • Accurate temperature settings from 20 °C to 60 °C
    • Temperature limit can be fixed at 43 °C, 50 °C or 55 °C
    • Suitable for showers
    • Exceptionally slimline, compact design
    Questions about the product Get contact
    award
    award
    award

    Product details

    Enjoy reliable heat

    Life has its ups and downs. So we think it's reassuring to have a hot water supply in your home that you can always count on. With this compact instantaneous water heater, water at a pleasant temperature is a given. With efficiency that is second to none.



    Very easy to operate

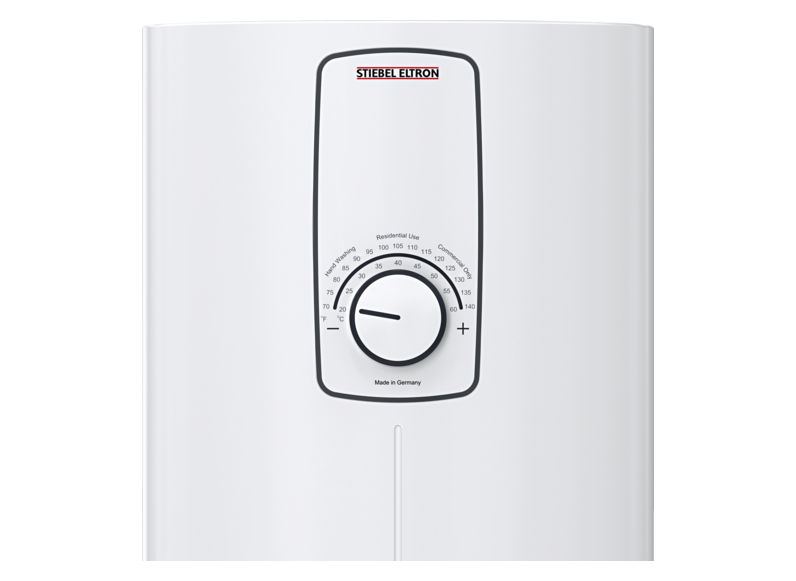

    With its minimal dimensions yet powerful output, this appliance supplies either several hand washbasins or a shower with water at your preferred temperature. Thanks to the rotary selector, it's easy to make adjustments. The end result is reliable hot water as an integral part of your day.


    ERP product datasheet
    Reach-Information
    UK ERP product datasheet
    Technical datasheet

    Product Number: 238154

    Rated voltage: 220 V

    Rated voltage 1: 220 V

    Rated voltage 2: 230 V

    Rated voltage 3: 240 V

    Rated output: 10.0/12.0 kW

    Rated output 1: 10.0/12.0 kW

    Rated output 2: 11.0/13.1 kW

    Rated output 3: 12.0/14.3 kW

    Rated current: 45.5/54.5 A

    Rated current 1: 45.5/54.5 A

    Rated current 2: 47.8/57.0 A

    Rated current 3: 50.0/59.5 A

    Fuse protection: 50/60 A

    Fuse protection 1: 50/60 A

    Fuse protection 2: 50/60 A

    Fuse protection 3: 50/60 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/60 Hz

    Phases: 1/N/PE

    IP rating: IP25

    Temperature setting: 20-60 °C

    Colour: white

    Height: 372 mm

    Width: 217 mm

    Depth: 109 mm

    Weight: 2.50 kg

    Energy efficiency class: A
